Pressure Vessel 16x65 – Glass Reinforced Epoxy Tank for Sand, Carbon, Arsenic & Softener Media
The Pressure Vessel 16x65 (Model 1665) is an empty pressure vessel used as the housing for media-based filtration and water treatment in commercial RO plants. It's built as a glass reinforced epoxy vessel with a polyethylene inner shell — the same construction as our 10x54 vessel, confirmed directly from the manufacturer's label. As with our other vessels, it's sold empty — you fill it with whatever media your application requires.
A Larger-Capacity Step Up
At 16 inches in diameter and 65 inches tall, this vessel offers substantially more media capacity than our 10x54 or 13x54 vessels, suited to larger commercial installations that need more volume without moving to our full industrial 21-inch or 24-inch sizes.
Multi-Purpose by Design
Because this is an empty vessel, one tank design supports several different treatment functions depending on what you load it with:
- Sand: For sediment and turbidity removal in larger-scale pre-filtration.
- Carbon (GAC or similar): For chlorine, taste, and odor removal ahead of an RO membrane.
- Arsenic removal media: For treating groundwater with elevated arsenic levels — a documented concern in parts of Pakistan's groundwater supply.
- Water softener resin: For hardness removal via ion exchange.
- Gravel: Commonly used as a support/underbedding layer beneath the primary media.
This vessel does not include media, a distributor tube, control valve, or strainer — those are selected and purchased separately based on your specific application.
Using a Strainer With This Vessel
Since this vessel is sold empty, you'll need a vessel strainer as part of your setup whenever you fill it with loose media like sand, carbon, arsenic removal media, or gravel. The strainer connects to the center riser pipe and sits at the bottom of the vessel, holding the media securely in place while letting filtered water pass through into the pipe and out to the next stage.
Strainer size depends on your specific riser pipe and setup rather than the vessel size alone — contact us to confirm the right strainer for this installation.
Which Size Do You Need?
| Model | Diameter x Height | Price | Best For |
|---|---|---|---|
| Pressure Vessel 8x18 | 8" x 18" | ₨9,000 | Standard-capacity commercial installations |
| Pressure Vessel 8x35 | 8" x 35" | ₨10,999 | Mid-range capacity — more than 8x18, less than 8x44 |
| Pressure Vessel 8x44 | 8" x 44" | ₨12,000 | Higher-volume commercial/industrial, deeper media bed |
| Pressure Vessel 10x54 | 10" x 54" | ₨13,999 | Mid-capacity step up from 8-inch vessels |
| Pressure Vessel 13x54 | 13" x 54" | ₨15,999 | Growing commercial installations needing more capacity |
| Pressure Vessel 16x65 (this page) | 16" x 65" | ₨27,999 | Larger commercial installations needing substantial capacity |
| Pressure Vessel 21x62 | 21" x 62" | ₨65,000 | Industrial-scale, large commercial installations |
| Pressure Vessel 24x72 | 24" x 72" | ₨79,999 | Our largest capacity — major industrial installations |
(Links pending — need the corrected, brand-free URLs for your other vessel pages once those are updated.)

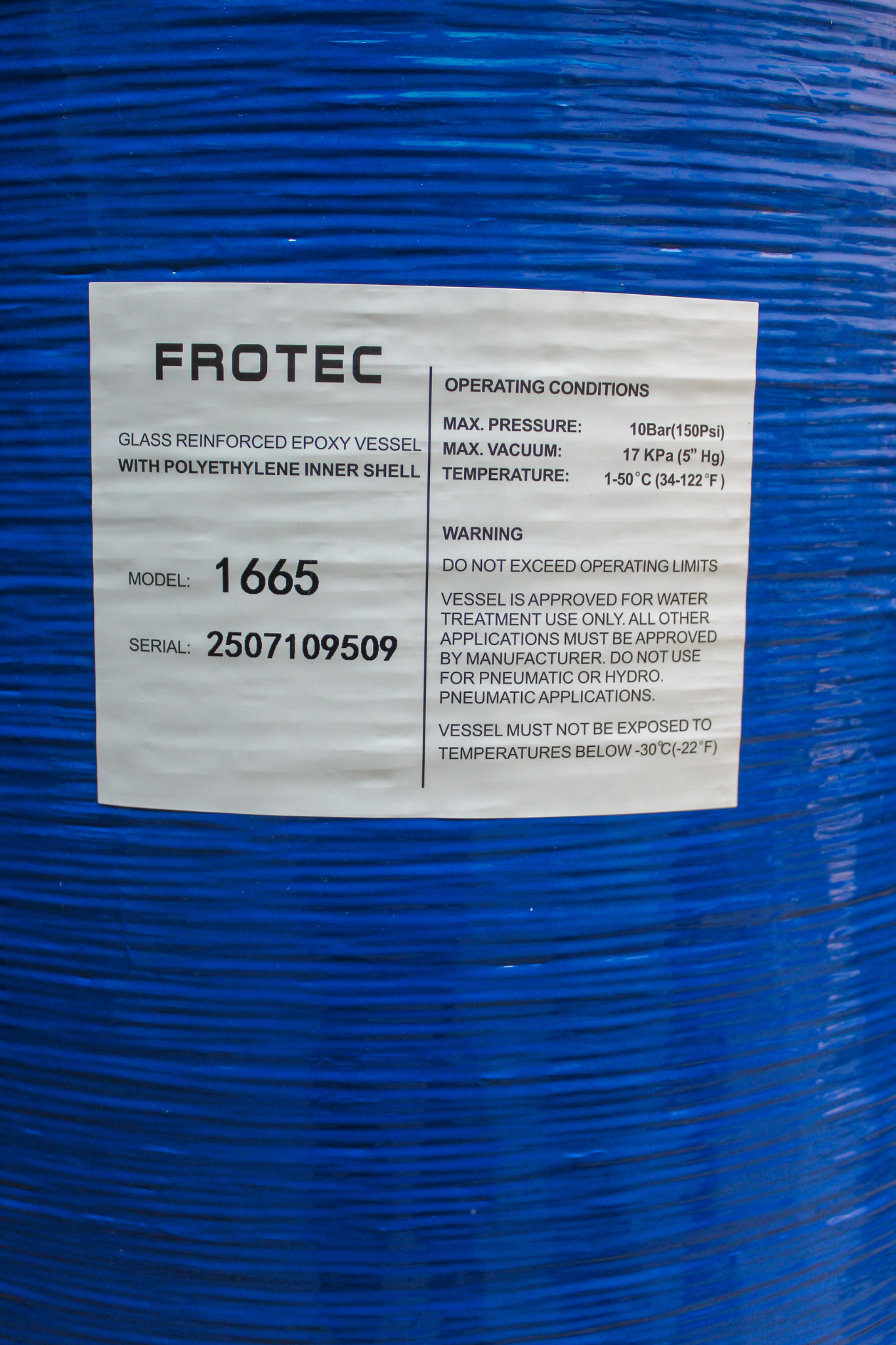

Operating Specifications (Confirmed From Manufacturer Label)
| Specification | Detail |
|---|---|
| Model | 1665 (16 inch diameter x 65 inch height, nominal) |
| Construction | Glass reinforced epoxy vessel with polyethylene inner shell |
| Max Pressure | 150 PSI (10 Bar) |
| Operating Temperature | 34–122°F (1–50°C) |
| Max Vacuum | 5" Hg (17 KPa) |
| Approved Use | Water treatment applications only |
| Not Approved For | Pneumatic or hydro-pneumatic applications |
| Minimum Exposure Temperature | Must not be exposed below -22°F (-30°C) |
| Color | Blue |
Important: Do not exceed the operating limits listed above — this is stated directly on the manufacturer's label as a safety requirement, not just a recommendation.
Who This Is For
Commercial RO plant builders, water treatment technicians, and dealers assembling filtration or softening systems that need substantial capacity without moving to a full industrial-scale vessel.
Frequently Asked Questions
Q1: Does this vessel come with filter media included?
No — this is the empty vessel only. You select and fill it with the media appropriate for your application (sand, carbon, arsenic removal media, softener resin, or gravel), purchased separately.
Q2: Do I need a strainer with this vessel?
Yes — since this is sold empty, you'll need a strainer along with a distributor/riser pipe to hold your chosen media in place and allow filtered water to exit correctly. Strainer size depends on your specific setup — contact us to confirm the right size for this installation.
Q3: What is this vessel made of?
A glass reinforced epoxy vessel with a polyethylene inner shell, the same construction as our 10x54 vessel.
Q4: What's the maximum operating pressure?
150 PSI (10 Bar), confirmed directly from the manufacturer's label.
Q5: What temperature range is this rated for?
34–122°F (1–50°C) for operation. It must not be exposed to temperatures below -22°F (-30°C), even when not in use.
Q6: What color is this vessel?
Blue.
Q7: Is delivery available across Pakistan?
Yes, nationwide delivery is available, including Karachi, Lahore, Islamabad, Rawalpindi, Faisalabad, and Multan.
