Domestic RO Fitting Price in Pakistan – 6mm & 10mm Connectors, Valves & Switches
Domestic RO Fittings for Every Connection in a Home RO Plant
A home RO plant has dozens of small connections between the tap, filter housings, pump, membrane, storage tank and faucet. Each one needs the right domestic RO fitting to stay leak-free. Axtron Pakistan supplies a complete range of China-made 6mm and 10mm domestic RO fittings: connectors, elbows, tees, valves, pressure switches, pipe and accessories. We sell retail and wholesale, with branches in Multan, Lahore and Bahawalpur and cash on delivery across Pakistan.
6mm or 10mm – Which Pipe Goes Where?
Every home RO plant in Pakistan uses two standard pipe sizes:
| Pipe | Where It’s Used |
|---|---|
| 10mm | From the raw water tap to the PPF (first) filter housing |
| 6mm | Every other connection inside the plant: between housings, pump, membrane, tank and faucet |

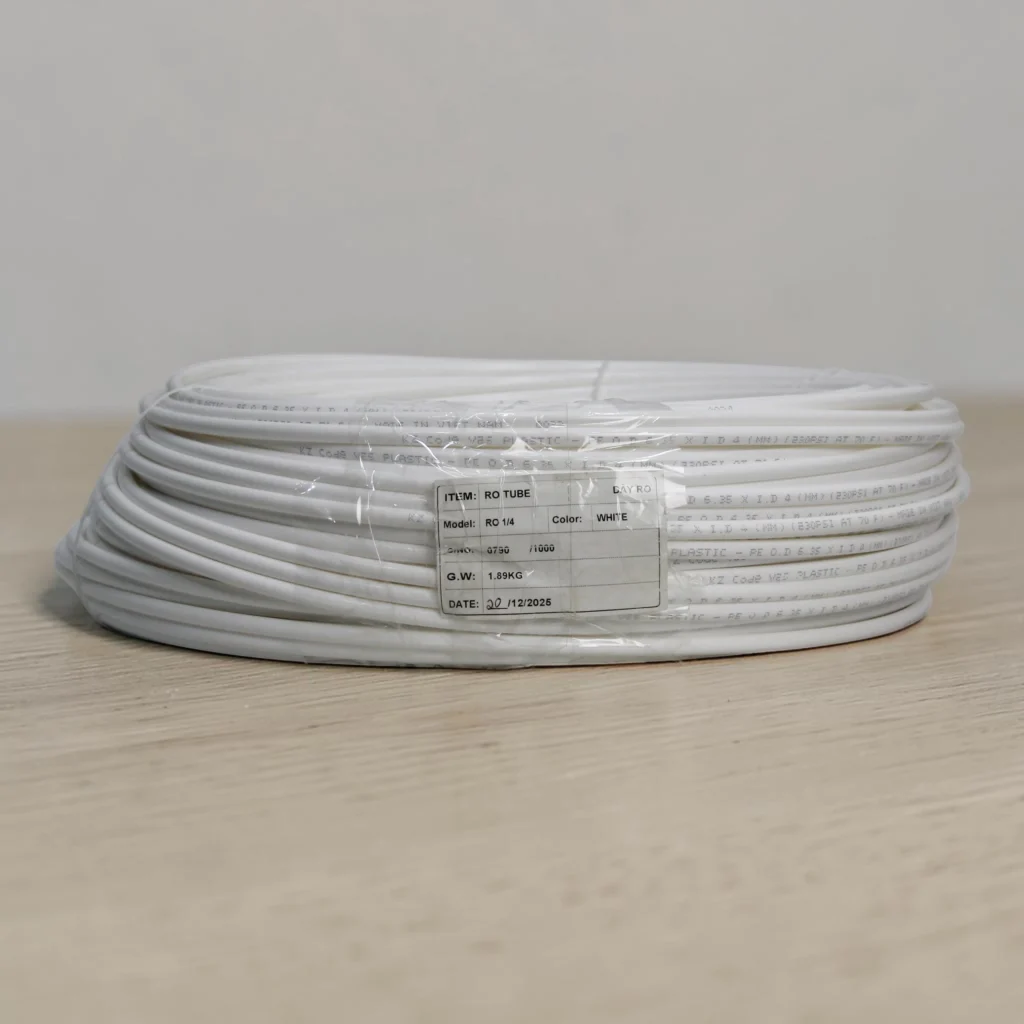

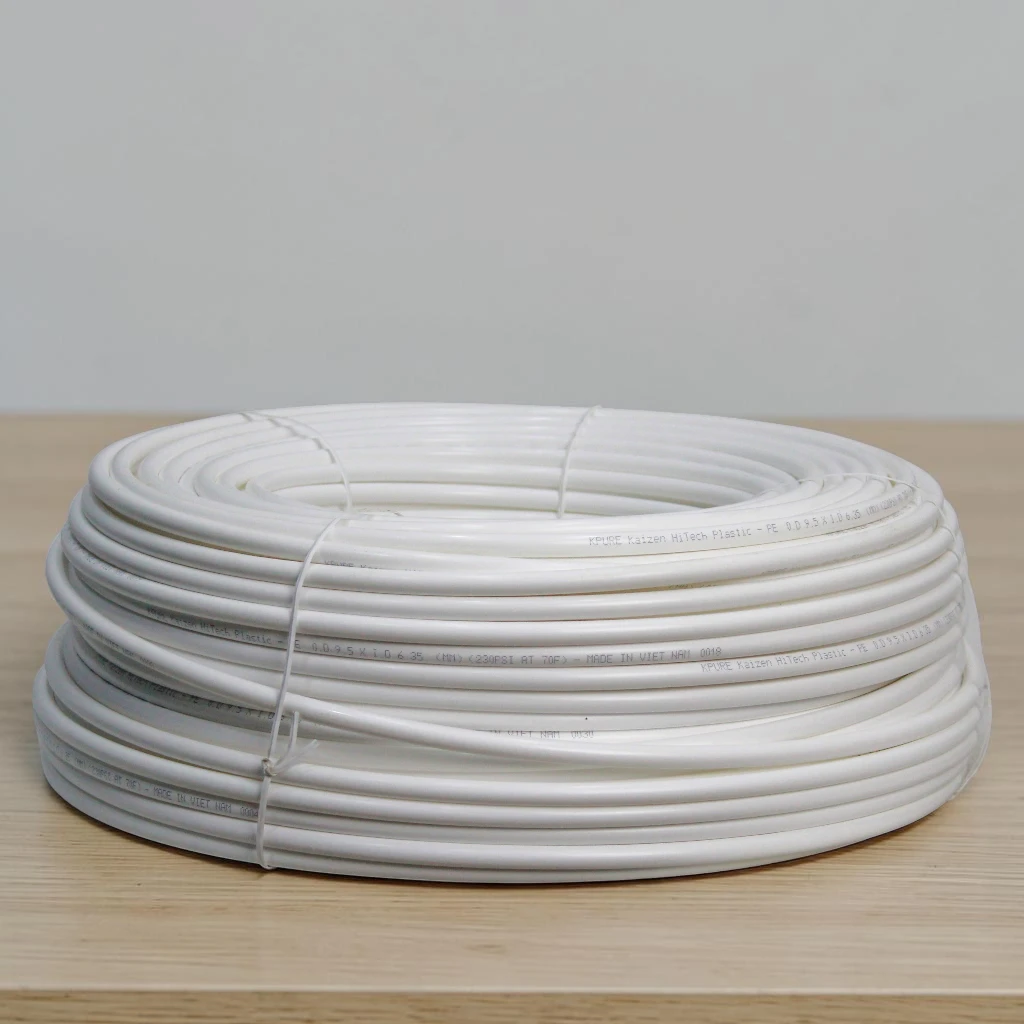

We supply both as full rolls: 6mm pipe roll (330 feet) and 10mm pipe roll (495 feet).
How to Read Connector Sizes
Connector sizes such as ½ × 6mm or ¼ × 10mm give two measurements:
- The first number is the thread size, in inches, that screws into the housing, pump or other part.
- The second number is the pipe size, in mm, that pushes into the other end.
Match both to your plant.
Domestic RO Fittings We Supply
Connectors

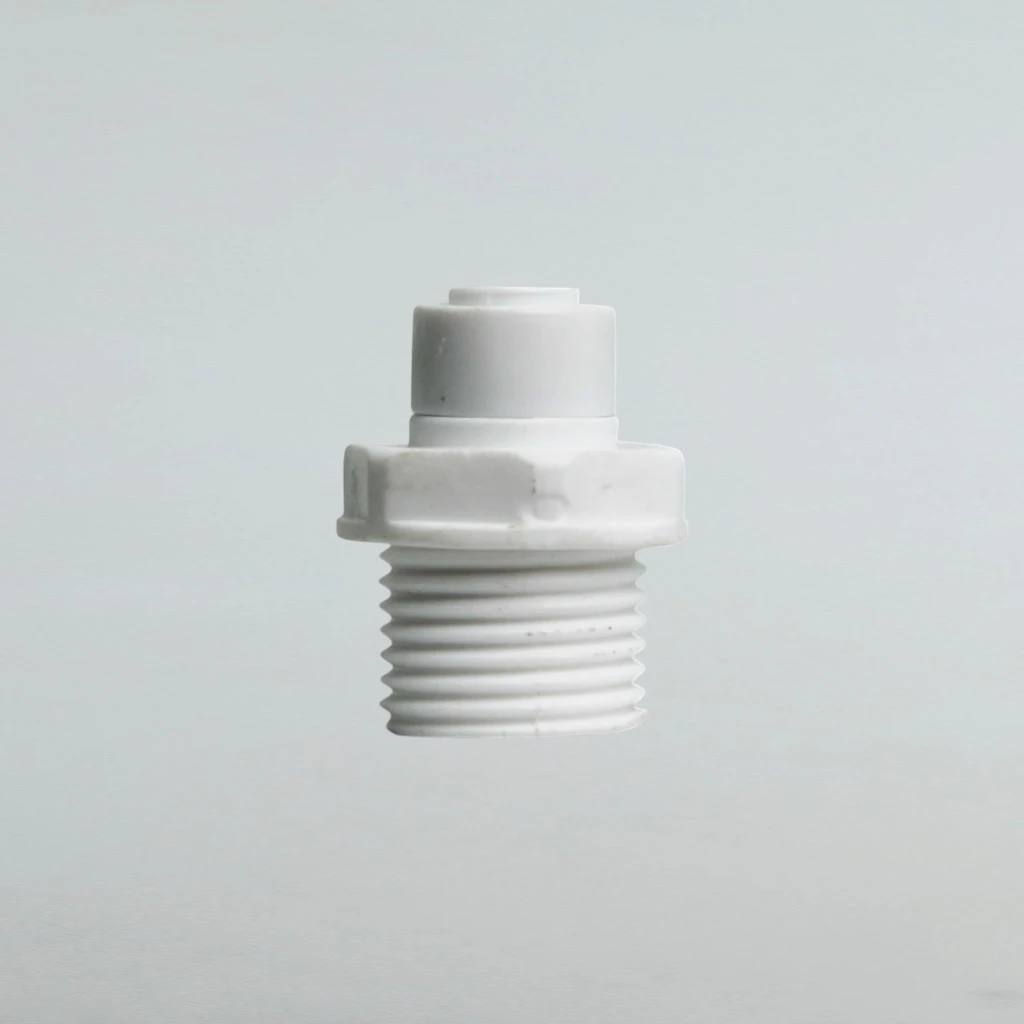

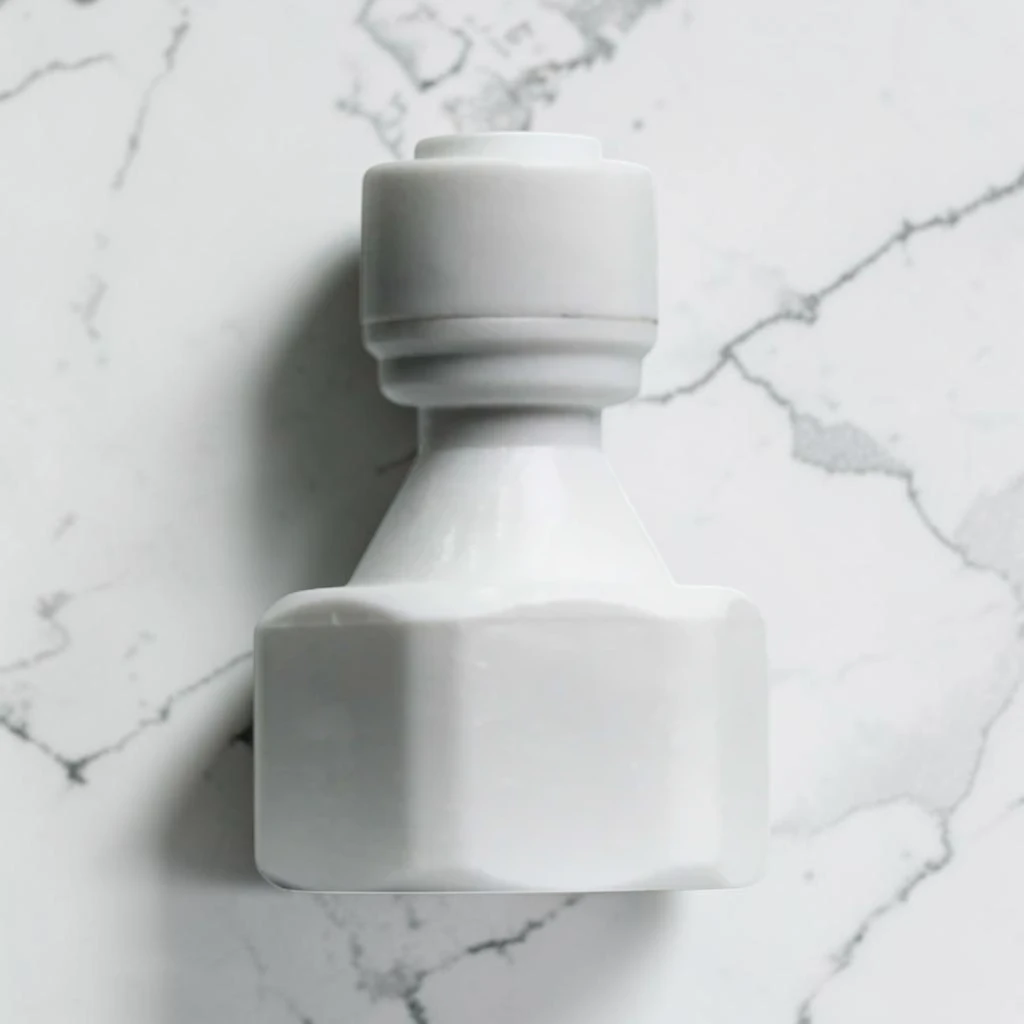

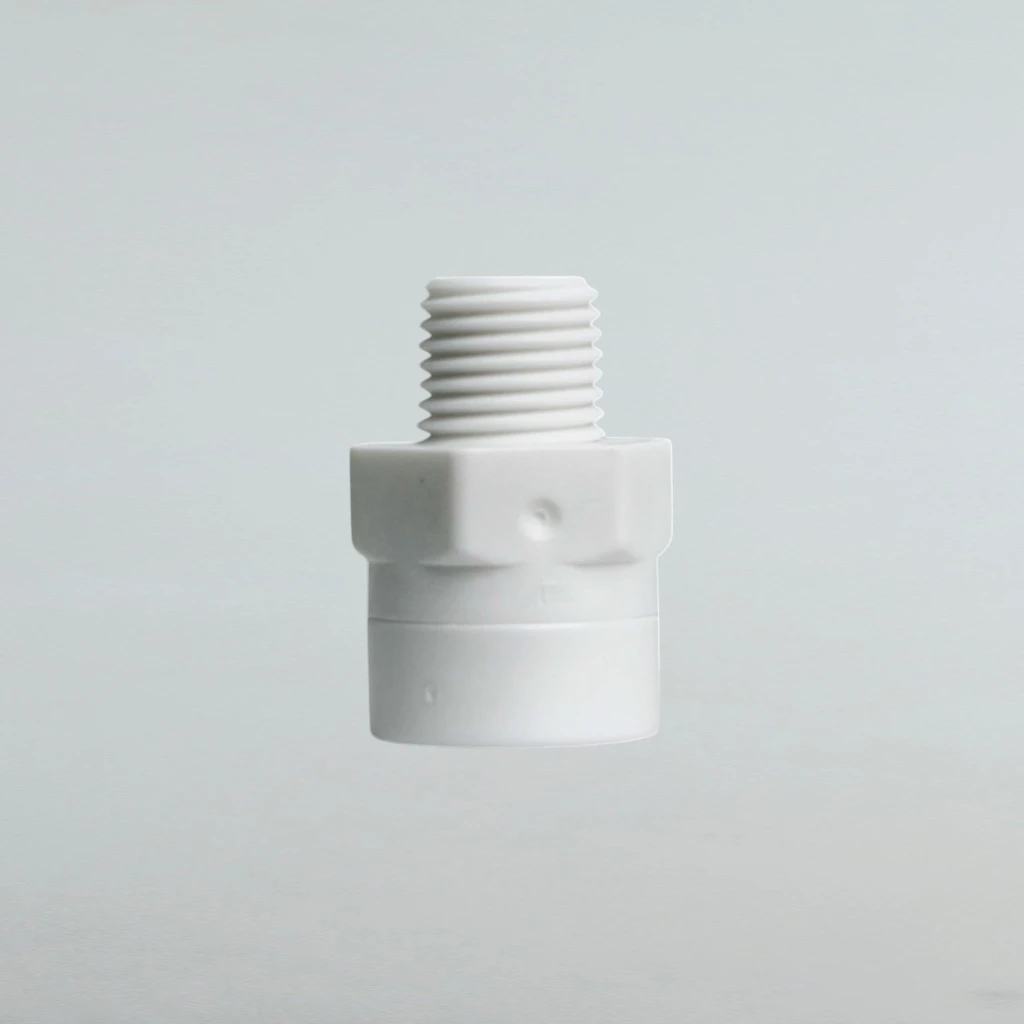

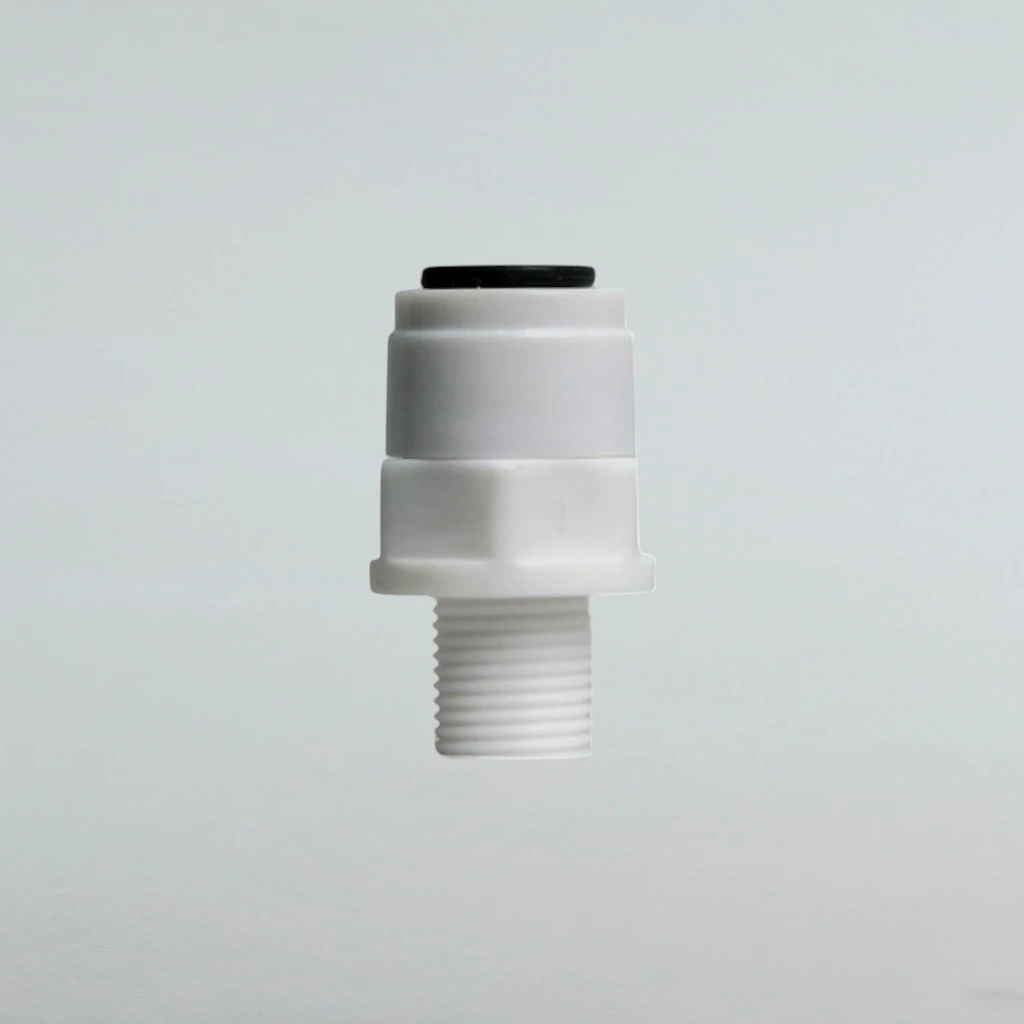

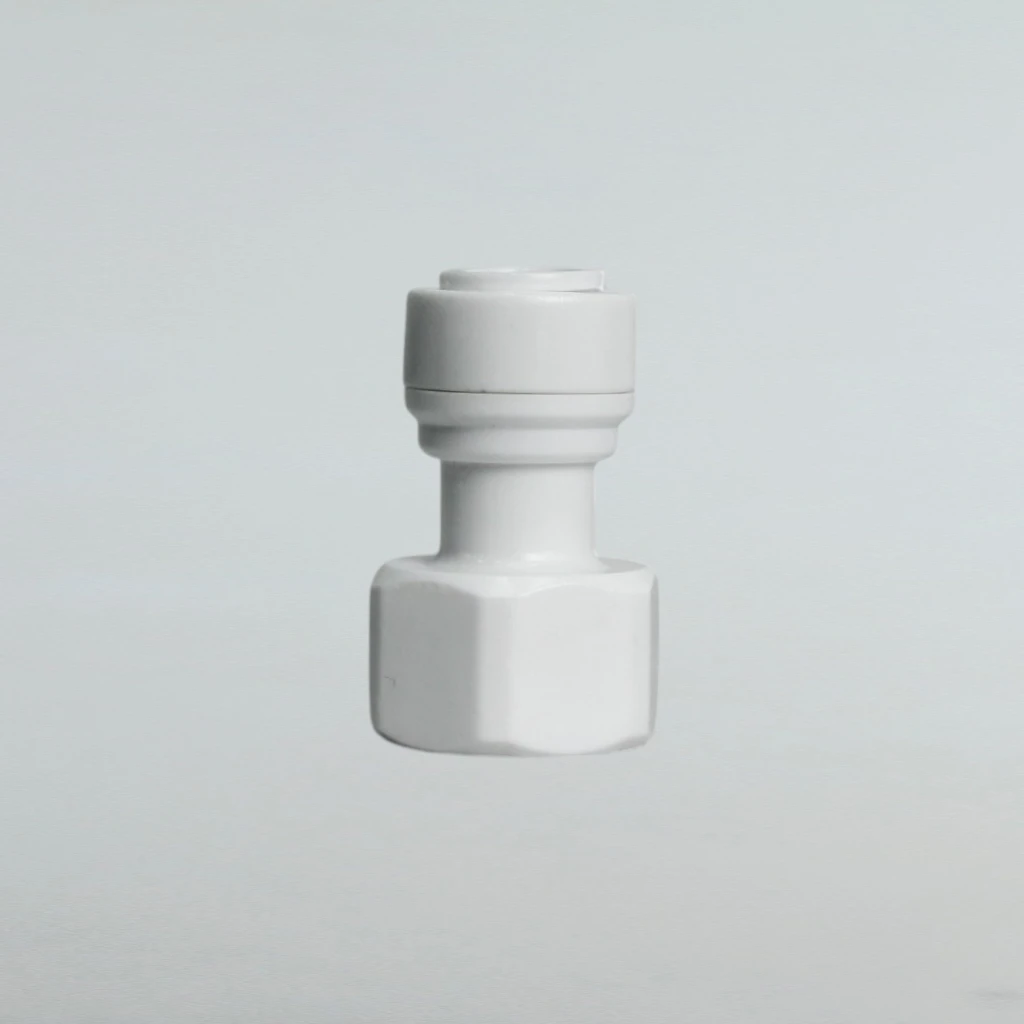

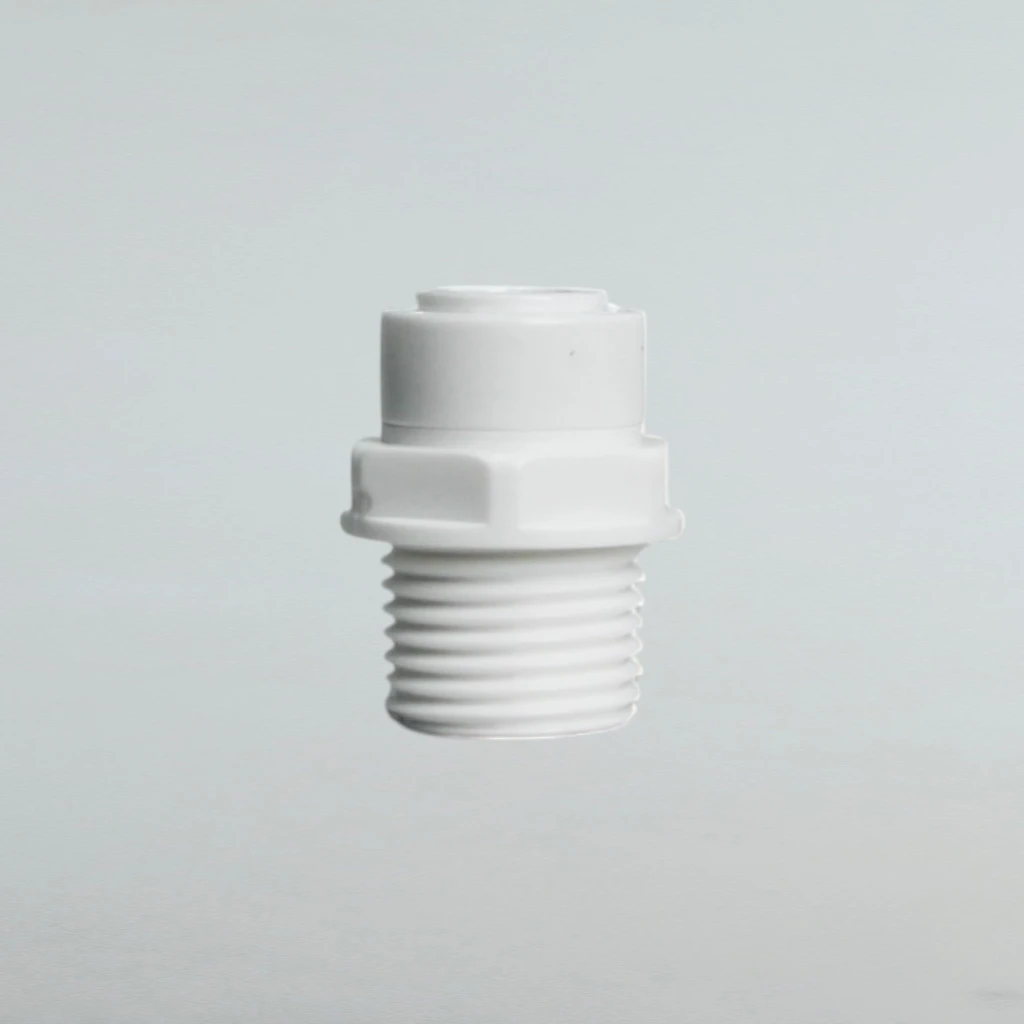

Male and female connectors join the pipe to threaded parts:
Also available:
- Plain 6mm sockets, 10 × 6 reducing sockets and 10mm end plugs
- Stainless steel mixture connectors, single ½” and double ¾”, for tap connections
Elbows and Tees
Elbows turn the pipe around corners:
- Plain 6 × 6 elbow
- Front elbows in 6mm and 10mm
- Pump elbow 6mm
- Membrane feed elbow 6mm
Tees split one line into two:
- Plain tees in 6mm, 10mm and 10 × 10 × 6
- Middle tees in 6mm, 6 × 10 × 6 and 10 × 6 × 10
- Side tee 6mm
- Y tees in 6 × 6 × 6 and 10mm
Valves
- Ball valves: the 6mm SS, 10mm SS and 6mm PVC ball valves open and shut a line by hand.
- Non-return valves (6mm and 10mm): these let water flow one way only and stop it flowing back. Options include the NR elbow 6mm, NR socket 6mm and NR tank valve 6mm.
- Tank valves (6mm, 10mm and ¾ × 10mm): these open and close the storage tank connection.
- Flush valves (6mm and 10mm): these are used to flush the membrane.
- 4-way auto shut-off valve 6mm: this stops raw water entering the plant when the tank is full.
Pressure Switches
- Low pressure switch 6mm: stops the pump when the water supply drops, so the pump never runs dry. Running dry is the most common reason RO pumps fail.
- High pressure switch 6mm: stops the pump once the storage tank is full.
Accessories

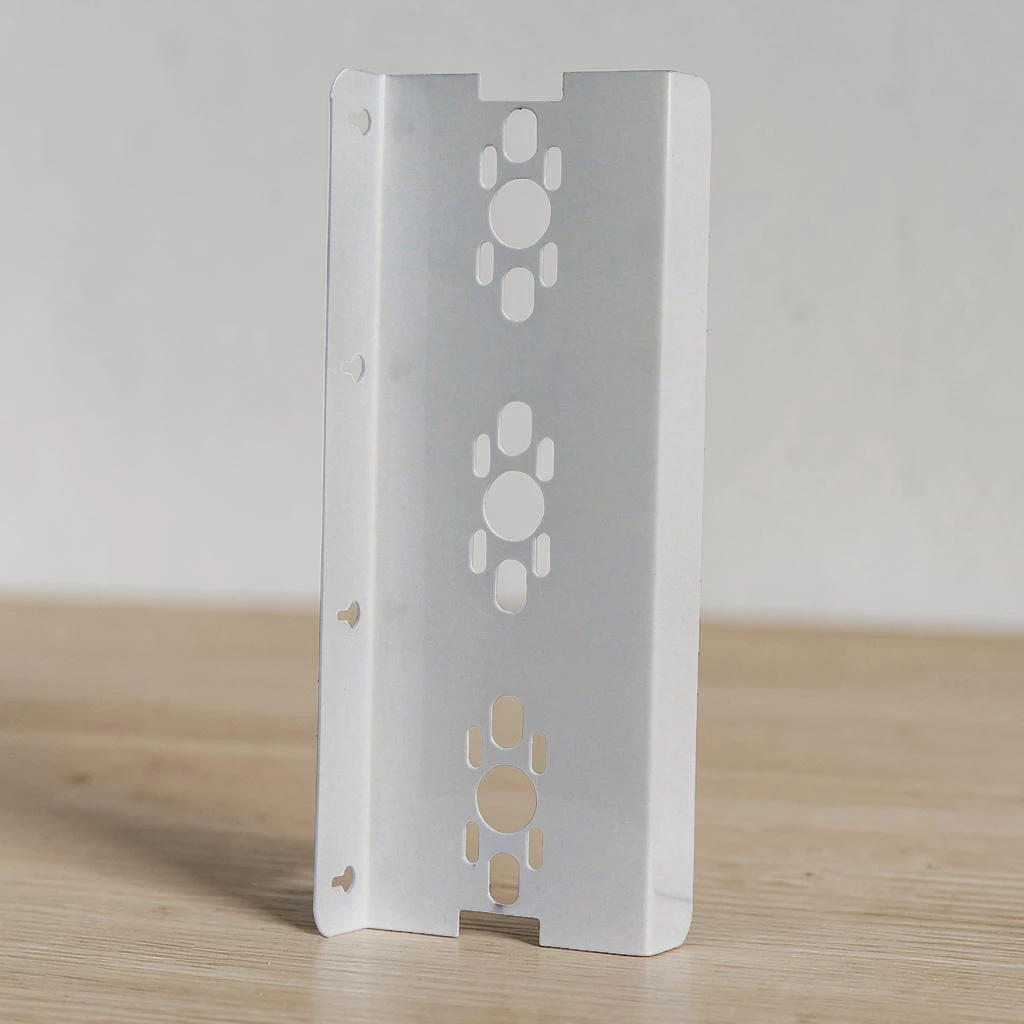

- Axtron triple filter plate: a mounting bracket for three 10″ housings.
- Axtron stainless steel under-neck diverter: a 2-way diverter for tap connections.
- Domestic RO housing key: opens and tightens 10″ filter housings.
- Diaphragm head seal: a replacement seal for domestic booster pump heads.
Wholesale Domestic RO Fittings – Direct From the Importer
Axtron Pakistan imports its domestic fittings, so technicians, dealers, water filter shops and RO installers can buy them in bulk at wholesale rates. Buy from our Multan, Lahore and Bahawalpur branches, or order for delivery anywhere in Pakistan. Contact any branch for dealer rates.
Why Domestic Fittings Leak or Break
From our counter and service experience:
- Mishandling or courier damage. Small plastic fittings can crack if dropped or packed loosely. Check each fitting before installing it.
- Over pressure. Domestic fittings are made for domestic plant pressure. Too much pressure causes leaks.
- Wrong fitting. A pipe not cut straight, not pushed fully into the fitting, or the wrong size used will leak slowly.
- Weather and age. Heat, direct sunlight and years of use make plastic brittle. Keep the RO plant in a shaded place.
- Chemicals in raw water. Tap water often carries chemicals that slowly weaken plastic fittings, especially on the raw water side.
Tips for a Leak-Free Fitting
- Cut the pipe straight and clean, not at an angle.
- Push the pipe fully into the fitting until it stops.
- Use 10mm only from the tap to the PPF housing, and 6mm everywhere else.
- Don’t overtighten threaded connectors.
- Replace old, discoloured or cracked fittings during filter service.
What Decides Domestic RO Fitting Price?
- Size: 6mm or 10mm, and thread size
- Material: PVC or stainless steel
- Type: connector, elbow, tee, valve or switch
- Quantity: wholesale orders get dealer rates
The current price of every fitting is shown on its product page, including any running offers.
Buy Domestic RO Fittings in Multan, Lahore, Bahawalpur and Across Pakistan
Multan (Head Office)
5FP4+CXF, Akbar Road, Tipu Sultan Colony, Multan 60000
Phone: 0302-1635555 · 0300-4773040 · 061-4544442
Lahore
91-A Feroz Pur Road, Lahore
Phone: 0304-8205829 · 042-37502222
Bahawalpur
Opposite Sadiq Public School, Ahmad Pur East Road, Bahawalpur
Phone: 0302-7401250 · 062-2201005
Contact
Timings: Saturday to Thursday, 10:00 AM – 7:00 PM (Friday closed)
Email: info@axtronpakistan.com
Follow us on Facebook and Instagram
Delivery and installation
- Cash on delivery to every city in Pakistan, including Karachi, Islamabad, Rawalpindi, Faisalabad, Sialkot, Gujranwala and Peshawar.
- Multan, Lahore and Bahawalpur: our own technicians fix leaks and replace fittings at your home (service charges are paid to Axtron).
- Other cities: we connect you on WhatsApp with an independent local technician. The technician quotes and collects payment directly. They are not Axtron staff, and Axtron is not responsible for their work.
Also see:
- Domestic filters, domestic RO membranes and domestic RO pumps
- For bigger plants: commercial RO fittings
- All RO plant fittings
- Our service pages: water filter in Multan and RO plant in Lahore
Frequently Asked Questions
Which pipe size is used in a home RO plant?
10mm from the raw water tap to the PPF housing, and 6mm for every other connection inside the plant.
What does ½ × 6mm mean on a connector?
½ is the thread size in inches, and 6mm is the pipe size that pushes into the other end.
What does a non-return valve do in an RO plant?
It lets water flow in one direction only and stops it flowing back. We supply 6mm and 10mm non-return valves, including the NR elbow, NR socket and NR tank valve.
What is the difference between low and high pressure switches?
The low pressure switch stops the pump when the water supply drops, protecting it from running dry. The high pressure switch stops the pump when the tank is full.
Why is my RO plant leaking from a fitting?
Usually the pipe is not cut straight or not pushed fully in, the wrong size was used, the pressure is too high, or the fitting is old and weakened. Replace the fitting and check the plant pressure.
Do you sell domestic RO fittings wholesale?
Yes. As importers we sell all fittings at wholesale rates to technicians, dealers and installers.
Where can I buy RO fittings in Multan?
At our head office on Akbar Road, Tipu Sultan Colony, Multan, for single pieces or wholesale quantities. Call 0302-1635555 or 061-4544442.
Do you deliver RO fittings to Karachi and Islamabad?
Yes. We deliver across Pakistan with cash on delivery.
